Heatsinks

Posted: Tue Jun 15, 2021 4:17 pm
by Stevengms
My CrowPi came with 3 heatsinks but no directions as to where they should go. I could guess but rather ask than get it wrong.

Re: Heatsinks

Posted: Wed Jun 16, 2021 8:26 am
by g7jjf

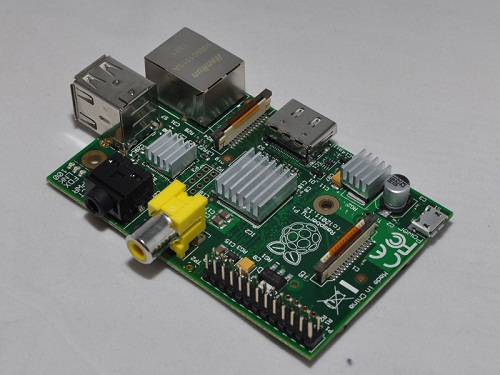

According to the Elecrow website at https://www.elecrow.com/heatsink-kit-for-rpi-p-750.html, I assume they go on the chips as shown in the picture below :


Re: Heatsinks

Posted: Wed Jun 16, 2021 7:49 pm
by Stevengms
Many thanks for the help. It certainly cleared up most of the issues. However, there is a small matter of a fan that came with the CrowPI. The leads on the fan do not give much of a clue. Any ideas? Stevengms

Re: Heatsinks

Posted: Fri Jun 18, 2021 6:22 am
by g7jjf
Sorry but my CrowPi didn't come with a fan so I can't help you with this. If no fitting instructions came with your kit then I would suggest contacting elecrow support direct at https://www.elecrow.com/contacts
